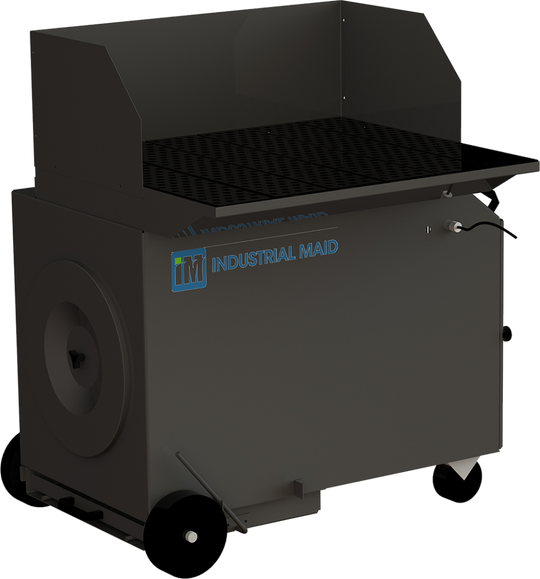

Downdraft Tables

Capture welding fumes, grinding dust, plasma, smoke and more. Rated from 1,000 to 4,000 CFM.

Downdraft Table Overview

Downdraft tables are designed to manage and collect fumes from welding and grinding areas to not only keep your employees healthy, but ensure they are safe and comfortable. Our downdraft tables are available in several standard sizes to meet your needs. With both cartridge and media-style collectors, we can address almost any application.

The below specifications overview features available on the product series, not all features are available on each product, please contact us for more details or questions.

  • 1HP to 3HP high pressure motor / blower
  • Cartridge and media style filtration
  • HEPA and carbon final filter available
  • Workstation enclosures with LED lights

Downdraft Tables Product Insight

Additional model options include a 2” poly pad, 2” aluminum baffle, carbon filters, HEPA final filter, minihelic pressure gauge, magnahelic pressure gauge, and MERV 11 bag filters.

Check out the specs, add to your cart or contact us about what air cleaner is right for your needs.

Download the spec sheet to get a printed copy of all product details.

Available Downdraft Tables Downloads:

Application Guidelines

Some of the most popular applications for portable fume collectors include welding smoke and fumes, grinding dust, graphite machining, shops and maintenance, and mechanical and trade schools.



Construction

Portable Media Downdraft (PAC)

  • 12 & 14 Ga. Powder Coated Steel Frame
  • 16 Ga. Steel Door
  • 3/16 Polyethylene Panels
  • Full Carbon Steel Construction Available
  • 4-way Aluminum Exhaust Grill
  • Casters

Portable Cartridge Downdraft (PFC)

  • 12, 14 & 16 Ga. Powder Coated Steel
  • 5″ Swivel/Lock Casters
  • 10″ Easy Roll Rear Wheels
  • Dust Drawer w/ Cam Release Lever
  • Tool-less Filter Service
  • 6″ x 10′ Self Supporting Fume Arm
  • On/Off Switch with 25′ Power Cord
  • 220 Sq. Ft. Flame Retardant Cartridge Filter
  • 1 or 1.5 HP High Pressure Motor/Blower Package

Specifications

ModelMotorVolume (CFM)DimensionsWeightBlowerFilters

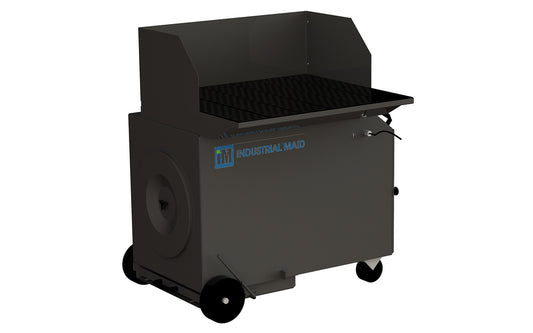

PFC8-DD321 HP TEFC 115/230/1/6080049"H x 43.5"L x 30"D365 lbsDirect Drive BI Wheel w/ Composite Cone(1) 200 SF Nanofiber

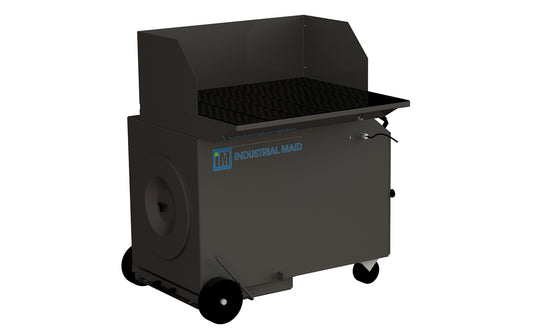

PFC12-DD321.5 HP TEFC 115/230/1/601,20049"H x 43.5"L x 30"D369 lbsDirect Drive BI Wheel w/ Composite Cone(1) 200 SF Nanofiber

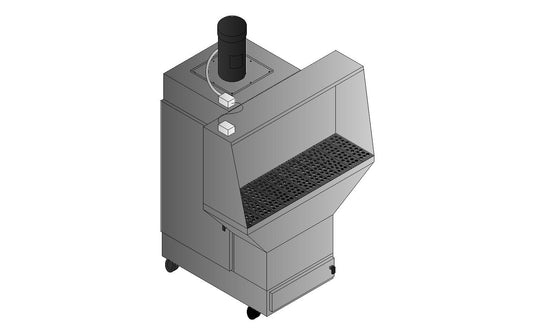

M36 PAC-DT241 HP TEFC 230/460/3/601,50078.75"H x 50"L x 24"D395 lbs10 x 10 Belt Drive(1) Merv 7, 4" Pleat (1) Merv 15 Bag*

*Efficiencies based on ASHRAE Test Methods
