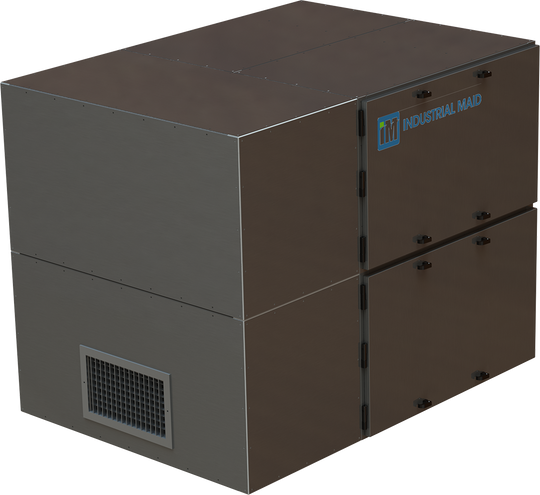

Ducted Air Cleaners

Control welding smoke and fumes, oil mist, vapors and other nuisance dust. Rated from 1,500 to 7,500 CFM.

Ducted Air Cleaners Overview

Industrial Maid manufactures a series of ducted packaged industrial dust collectors designed to keep facilities clean and safe. These industrial air cleaner units are designed to be ducted to collect welding smoke and fumes, grinding dust, oil mist, vapors, odors or soldering fumes. Our industrial dust collectors help you protect your valued employees and offer a cost-effective solution vs. exhausting air outside your plant.

The below specifications overview features available on the product series, not all features are available on each product. Please contact us for more details or questions.

  • Self-contained
  • Vertical or horizontal configuration
  • Sealed filter cabinet
  • Highly efficient
  • Tool-less filter maintenance
  • Available in polyethylene plastic or powder coated carbon steel with a 16-gauge steel frame
  • Belt drive and backward inclined blower packages

Ducted Air Cleaners Product Insight

Additional model options include a silencer, eyebolts, magnahelic pressure gauge, MERV 11 bag filters, carbon bank, HEPA, and source capture plenum. In some cases, taking advantage of a horizontal dust collector design with a ceiling mount can be the perfect industrial air cleaning solution to a shortage of valuable floor space.

Check out the specs, add to your cart or contact us about what air cleaner is right for your needs.

Available Ducted Air Cleaners Downloads:

Snapshots & Details

Our ducted air purifiers can be customized to be installed various ways indoors and can even be installed outdoors. Use our ducted commercial air filtration systems as a substitute for exhausting conditioned air outside your factory or welding space.

M36 Series ducted air cleaners are available in multi-stage filtration configurations. These industrial air purifiers will meet your specific application needs. M36 Filter Packs are available when blower-less filter modules are required.

The M36 Series ducted industrial air purifiers come in several models ranging 1,500 to 7,500 CFM to handle a variety of air filtration requirements.

Application Guidelines

Some of the most popular applications for duct air cleaners include welding smoke and fumes, oil mist, machine grit and smoke, odors and vapors, and process dusts.



  • 12 & 14 Ga. Powder Coated Steel Frame
  • 16 Ga. Steel Doors
  • 3/16 Polyethylene Panels
  • Adjustable Compression Hinges
  • Cam Door & Filter Latches
  • 4-Way Aluminum Exhaust Grille
  • Cam Over Gasket Seal Frame

Model Motor Volume (CFM) Dimensions Weight Blower Filters

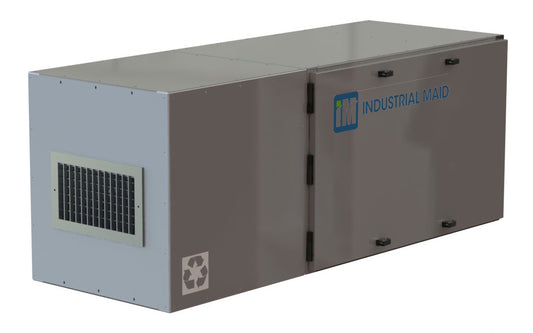

M36 IAC 1 HP TEFC230/460/3/60 1,500 26"H x 23.75"L x 66"D 285 lbs. 10x10 Forward CurveBelt Drive (1) Merv 7, 4" Pleat(1) Merv 15 Bag*

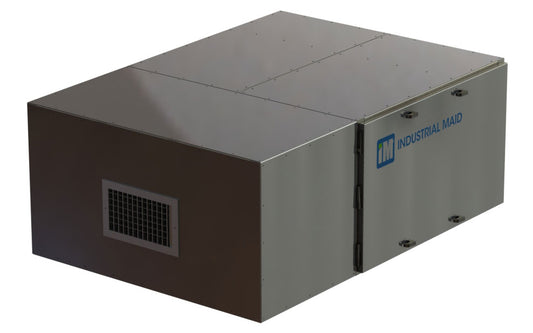

M36x2 IAC 2 HP TEFC 230/460/3/60 3,500 26"H x 47.5"L x 66"D 443 lbs. 10x10 Forward Curve Belt Drive (2) Merv 7, 4" Please(2) Merv 15 Bags*

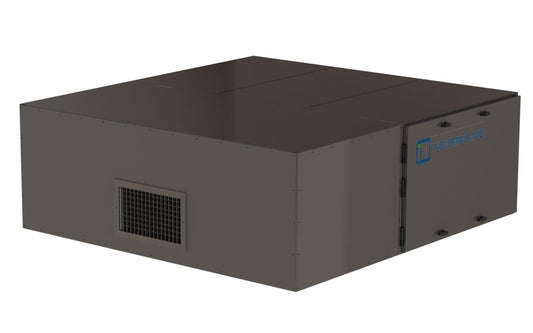

M36x3 IAC 5 HP TEFC230/460/3/60 4,500 26"H x 71.25"L x 76"D 620 lbs. 12x12 Forward CurveBelt Drive (3) Merv 7, 4" Pleat(3) Merv 15 Bags

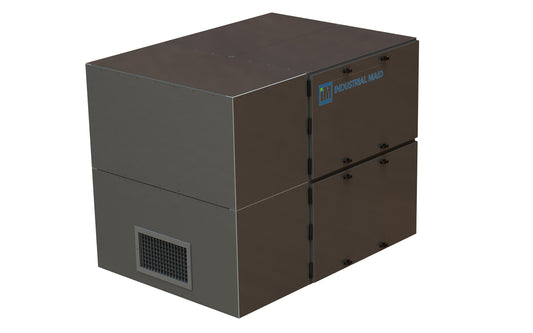

M36x4 IAC 5 HP TEFC 230/460/3/60 6,500 52"H x 49"L x 67"D 845 lbs. 12x12 Forward Curve Belt Drive (4) Merv 7, 4" Pleat(4) Merv 15 Bags*
M36 Blowerless 2,000 26"H x 25"L x 42"D 175 lbs. N/A (1) Merv 7, 4" Pleat(1) Merv 15 Bag*
M36x2 Blowerless 4,000 26"H x 47.5"L x 42"D 305 lbs. N/A (2) Merv 7, 4" Pleat(2) Merv 15 Bag*
M36x3 Blowerless 6,000 26"H x 74"L x 42"D 480 lbs. N/A (3) Merv 7, 4" Pleat(3) Merv 15 Bags*
M36x4 Blowerless 8,000 52"H x 49"L x 42"D 610 lbs. N/A (4) Merv 7, 4" Pleat(4) Merv 15 Bags*
M36x3x2 Blowerless 12,000 78"H x 48.5"L x 42"D 930 lbs. N/A (6) Merv 7, 4" Pleat(6) Merv 15 Bags*

*Efficiencies based on ASHRAE Test Methods
