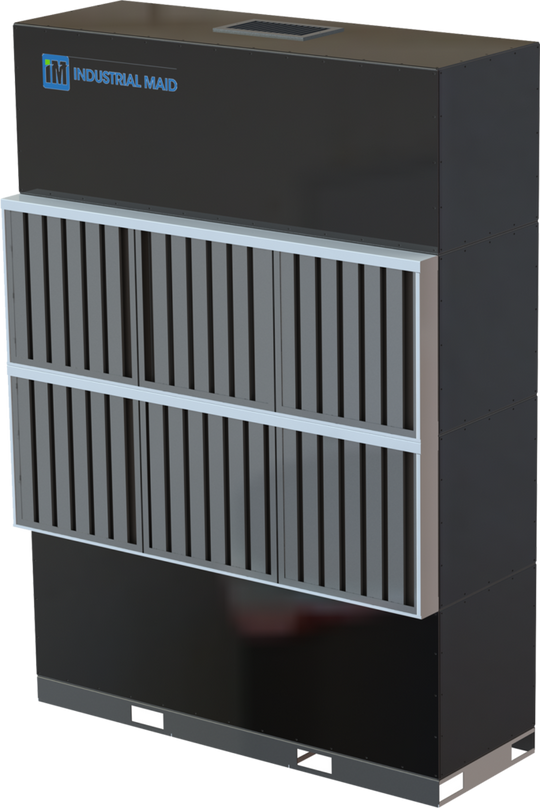

Filter Wall Overview

Industrial Maid is a leader in the industrial media air filtration industry, providing practical, modular “side and back-draft” style industrial filter walls. The multi-stage filtration design of our U.S.-made industrial air cleaners give the flexibility to properly select the right media to collect grinding and finishing dust, welding smoke or fumes.

The below specifications overview features available on the product series, not all features are available on each product. Please contact us for more details or questions.

  • Arrives ready for placement and wiring to electrical power
  • Low-energy and low-cost system
  • Custom from 53” tall to 114” tall
  • CFM ranges from 3,000 to 7,500
  • No compressed air
  • Easy to handle dump trays (EB34 and EB56 models only)
  • Simple and safe

Filter Walls Product Insight

Additional model options include a silencer, manometer, dust drawers, HEPA final filter, magnahelic pressure gauge and MERV 11 bag filters.

Check out the specs, add to your cart or contact us about what air cleaner is right for your needs.

View All Products
View Industrial Maid Filters
View OEM Filters

Available Commercial Air Cleaners Downloads:

Product Sheet

Snapshots & Details

Application Guidelines

Some of the most popular applications for filter walls are welding smoke and fumes, grinding dust, and composite dust.

Construction

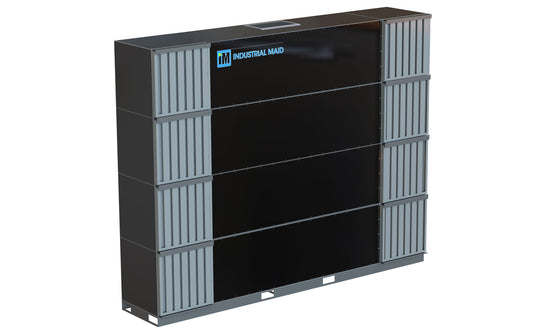

FW35 & FW60:

  • 12, 14 & 16 Ga Powder Coated Steel Frame
  • 3/16 Polyethylene Panels
  • Full Carbon Steel Construction Available
  • 4-Way Aluminum Exhaust Grille

EB34 Module & EB56 Module:

  • 7, 10 & 14 Ga Powder Coated Steel Frame
  • 16 Ga Powder Coated Steel Panels
  • Baffled Inlet Grid
  • Gasketed Front Filter Access
  • 4-Way Aluminum Exhaust Grille
  • Fork Lift Slots
  • Spark Drop Out Chamber
  • Optional Dust Drawers

EB45 Module:

  • 7, 10 & 14 Ga Powder Coated Steel Frame
  • 3/16 Polyethylene Panels
  • Fork Lift Slots
  • Full Carbon Steel Construction Available
  • 4-Way Aluminum Exhaust Grille

Model Motor Volume (CFM) Dimensions Weight Blower Filters
FW35x2 2 HP TEFC230/460/3/60 4,000 53"H x 120"L x 26.5"D 534 lbs. 10 x 10 Belt Drive (4) Merv 7, 4" Pleat(4) Merv 15 Bags*
FW35x3 2 HP TEFC230/460/3/60 4,000 77.5"H x 120"L x 26.5"D 795 lbs. 10 x 10 Belt Drive (6) Merv 7, 4" Pleat(6) Merv 15 Bags*
FW35x4 2 HP TEFC230/460/3/60 4,000 102"H x 120"L x 26.5"D 967 lbs. 10 x 10 Belt Drive (8) Merv 7, 4" Pleat(8) Merv 15 Bags*
FW60x2 5 HP TEFC230/460/3/60 6,500 53"H x 130"L x 26.5"D 628 lbs. 12 x 12 Belt Drive (4) Merv 7, 4" Pleat(4) Merv 15 Bags*
FW60x3 5 HP TEFC230/460/3/60 6,500 77.5"H x 130"L x 26.5"D 795 lbs. 12 x 12 Belt Drive (6) Merv 7, 4" Pleat(6) Merv 15 Bags*
FW60x4 5 HP TEFC230/460/3/60 7,500 102"H x 130"L x 26.5"D 993 lbs. 12 x 12 Belt Drive (8) Merv 7, 4" Pleat(8) Merv 15 Bags*

*Efficiencies based on ASHRAE Test Methods
