Dust Collection Systems
There are many smaller applications that still need to be addressed for dust collection. Whether you are working in a farm shop or dealing with composite dust or general nuisance dust, you need to think about how to collect and contain that dust in your work environment. That is where the DFC series provides a great solution. These compact designed dust collectors are great for lower CFM and lighter loading applications. The single cartridge can be designed to fit several areas of your shop.
The below specifications overview features available on the product series, not all features are available on each product, please contact us for more details or questions. Or learn tips on Keeping Your Wood Shop Safe and Clean.
- 1 or 1.5 HP high pressure motor blower package–non-sparking composite cone and wheel
- On/Off switch with 25” power cord
- Sealed dust drawer with cam release lever
- Hopper with 5-gallon container
- Tool-less service
- 12, 14 and 16-gauge powder coated steel
- 4 to 8” inlet collar
Dust Collectors Product Insight
Check out the specs, add to your cart or contact us about what air cleaner is right for your needs.
-

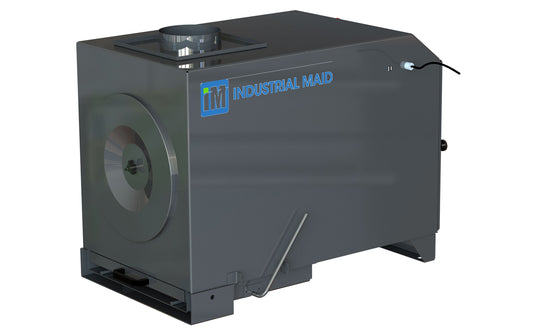

View DFC8 Dust and Fume Collector 800 CFMDFC8 Dust and Fume Collector 800 CFM
-

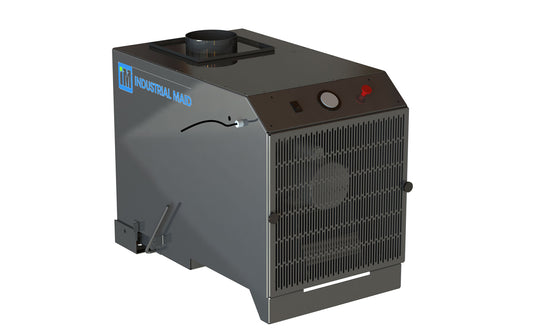

View DFC12 – Dust and Fume Collector 1200 CFMDFC12 – Dust and Fume Collector 1200 CFM
Download the spec sheet to get a printed copy of all configurations.
Available Dust Collectors Downloads:
Snapshots & Details
Application Guidelines
Dust collectors are a useful solution for industrial air filtration and ventilation across any industry—the solution is ideal for lower CFM and lighter filter loading applications where traditional dust collection systems don’t fit.
Construction
DFC Series:
- 1 or 1.5 HP High Pressure Motor Blower Package – non-sparking composite cone & wheel
- On/Off Switch with 25″ power cord
- Sealed Dust Drawer with Cam Release lever
- Tool-less service
- 12, 14 & 16 gauge powder coated steel
- 4 – 8″ Inlet Collar
| Model | Motor | Volume (CFM) | Dimensions | Weight | Blower | Filters |
|---|---|---|---|---|---|---|
| DFC8 | 1 HP TEFC 115/230/1/60 | 800 | 32"H x 44.5"L x 26.32"D | 297 lbs. | Direct Drive Bl | (1) 250 SQ FT 80/20 Fire Retardant Filter |
| DFC12 | 1.5 HP TEFC 115/230/1/60 | 1,200 | 80"H x 44.5"L x 26.32"D | 301 lbs. | Direct Drive Bl | (1) 250 SQ FT 80/20 Fire Retardant Filter |

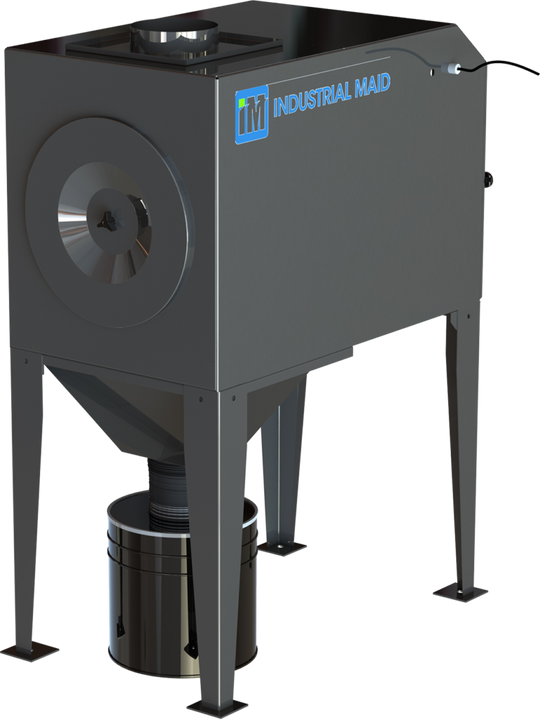

| DFC8 Hopper | 1 HP TEFC 115/230/1/60 | 800 | 32"H x 44.5"L x 26.32"D | 309 lbs. | Direct Drive Bl | (1) 250 SQ FT 80/20 Fire Retardant Filter |
| DFC12 Hopper | 1.5 HP TEFC 115/230/1/60 | 1,200 | 60"H x 44.5"L x 26.32"D | 313 lbs. | Direct Drive Bl | (1) 250 SQ FT 80/20 Fire Retardant Filter |
